7026 AC high precision ball bearing 130*200*33 mm Milling spindle

7026 AC high precision ball bearing 130*200*33 mm Milling spindle

Angular contact ball bearings 7026C 7026AC 7026B used in precision machine tools can be divided into two categories, one for the spindle of machine tools, and the other for high-speed grinding of spindles and motorized spindles of grinders. Their structures and properties vary according to their uses.

The ball bearing 7026AC specification as following:
The bearing full name:single row four point contact ball bearing
The bearing full items:7026AC
The bearing old type:7026c 7026b
Original:Made In China
DB:Back-to-back arrangement Designation suffix DB
DF:Designation suffix DB Designation suffix DF (FF)
DT:Tandem arrangement Designation suffix DT (T)
TBT:Back-to-back and tandem arrangement Designation suffix TBT (TD)
TFT:Face-to-face and tandem arrangement Designation suffix TFT (TF)
The bearing clearance:C1 C2 C3 Group
The bearing boundary size:130*200*33 mm
The bearing outerside diameter:200mm
The bearing inside diameter:130mm
The bearing width:33mm
The bearing load :axial and radial load
The bearing accuracy grade:P5 P4 P2 grade
The delivery time: in stock, within one day after getting the order
The bearing full inch size:7.87x5.12x1.3 inch size
The bearing outer diameter inch size:7.87
The bearing inner diameter inch size:5.12
The bearing height:1.3 inch size
The bearing stock qty:2000PCS

Back to back bearing arrangement
Face to face bearing arrangement
Tandem bearing arrangement
DB:Back-to-back arrangement Designation suffix DB
DF:Designation suffix DB Designation suffix DF (FF)
DT:Tandem arrangement Designation suffix DT (T)
TBT:Back-to-back and tandem arrangement Designation suffix TBT (TD)
TFT:Face-to-face and tandem arrangement Designation suffix TFT (TF)
TT:Tandem arrangement Designation suffix TT (3T)
QBC:Tandem back-to-back arrangement Designation suffix QBC (TDT)
QFC:Tandem face-to-face arrangement Designation suffix QFC (TFT)
QBT:Back-to-back and tandem arrangement Designation suffix QBT (3TD)
QFT:Face-to-face and tandem arrangement Designation suffix QFT (3TF)
QT:Tandem arrangement Designation suffix QT (4T)

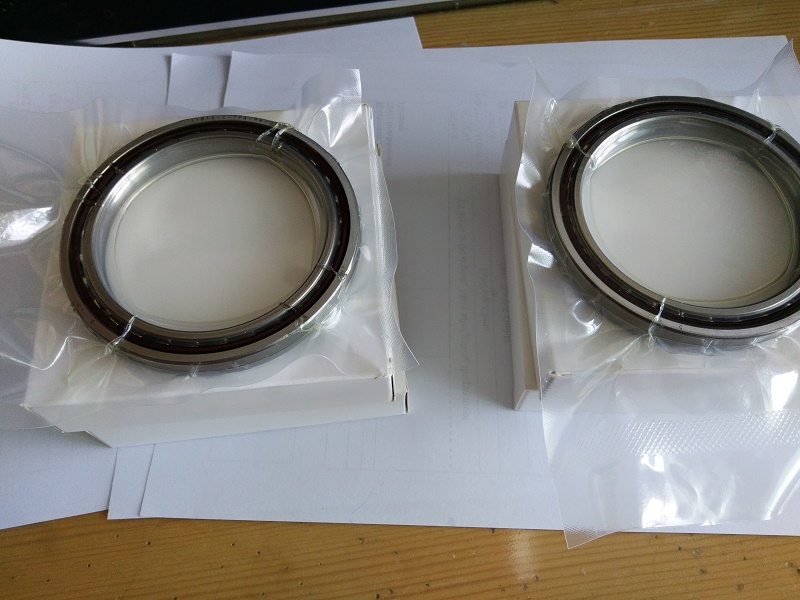

7026 AC high precision ball bearing 130*200*33 mm Milling spindle Images
