Spur Gear Helical Gear for the gearbox transmission

Name: Spur Gear Helical Gear for the gearbox transmission
Brand: JHB or your required
Price: 1000 USD

Wholesale Spur Gear Helical Gear for the gearbox transmission from china suppliers

Brand Name : JHB or your required

Model Number : Gear002

Certification : Quality certificate

Place of Origin : China

MOQ : 10pcs

Price : 1000-10000USD

Payment Terms : T/T,L/C, Western Union

Supply Ability : 1000PCS/MONTH

Delivery Time : 60 days

Packaging Details : Carton or standard export wooden case

Material : 42CrMo 18CrMo7-6

Precision grade : Class8 Class7 Class9 Class10

Application : Gearbox, Shaft

Feature : high rigidity, high radial load carrying capacity

Lubrication : Oil Lubrication

Oil : Oil groove and oil hole

Original : LuoYang China

Payment : T/T .L/C

Contact Now

Spur Gear Helical Gear for the gearbox transmission

Classification by tooth shape: The tooth shape of gears includes tooth profile curve, pressure angle, tooth height and displacement. Involute gears are relatively easy to manufacture, so among the gears used in modern times, involute gears account for the absolute majority, while cycloidal gears and arc gears are rarely used. In terms of pressure angle, gears with small pressure angles have smaller load-bearing capacity; while gears with large pressure angles have higher load-bearing capacity, but the load on the bearings will increase when the transmission torque is the same, so they are only used in special circumstances.
2. Classification by gear shape: Gears can also be divided into cylindrical gears, bevel gears, non-circular gears, racks, and worm gears according to their shape.
3. Classification according to tooth line shape: Gears can be divided into spur gears, helical gears, herringbone gears, and curved gears.
4. Classification according to the surface on which the gear teeth are located: Gears can be divided into external gears and internal gears.
5. Classification by manufacturing method: Gears can be divided into cast gears, cut gears, rolled gears, sintered gears, etc.

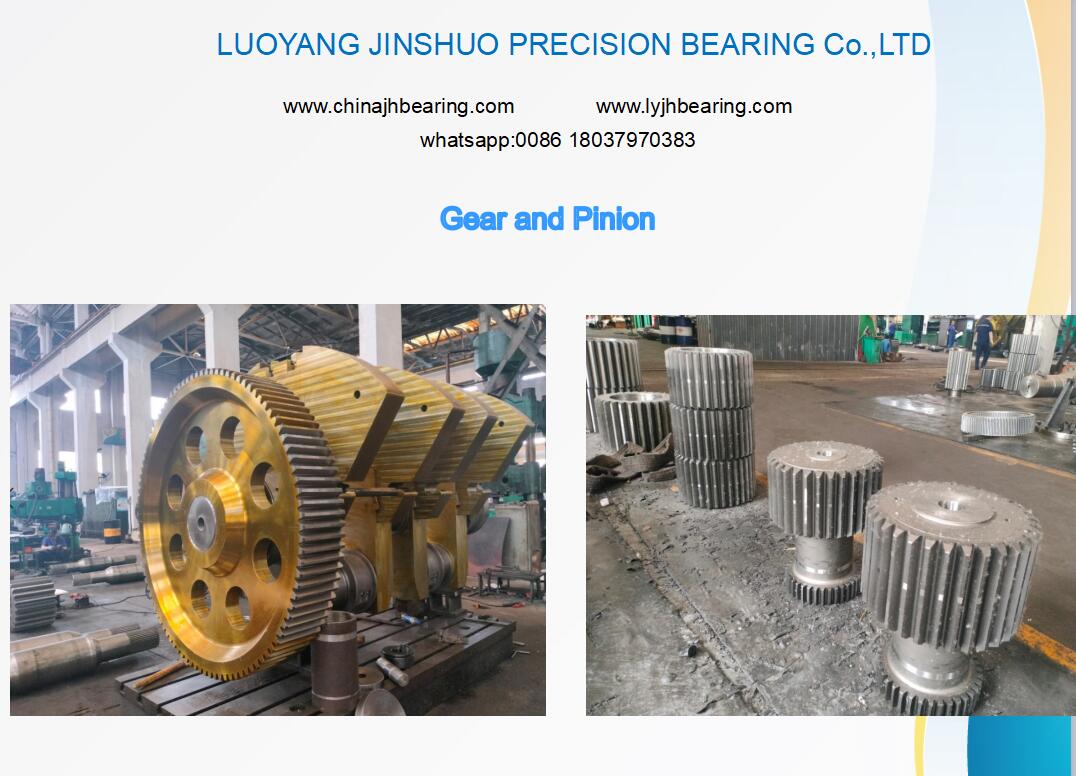

Spur Gear Helical Gear for the gearbox transmission Images
